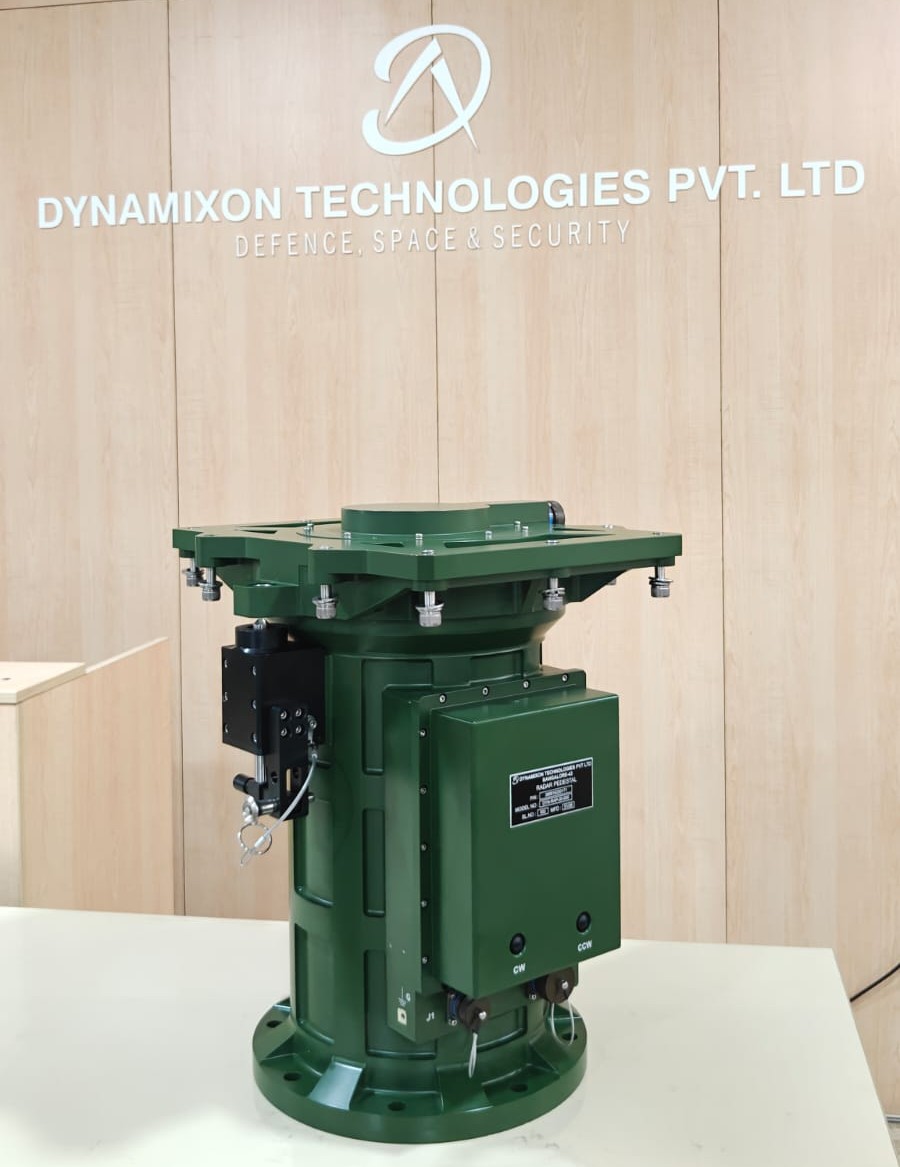

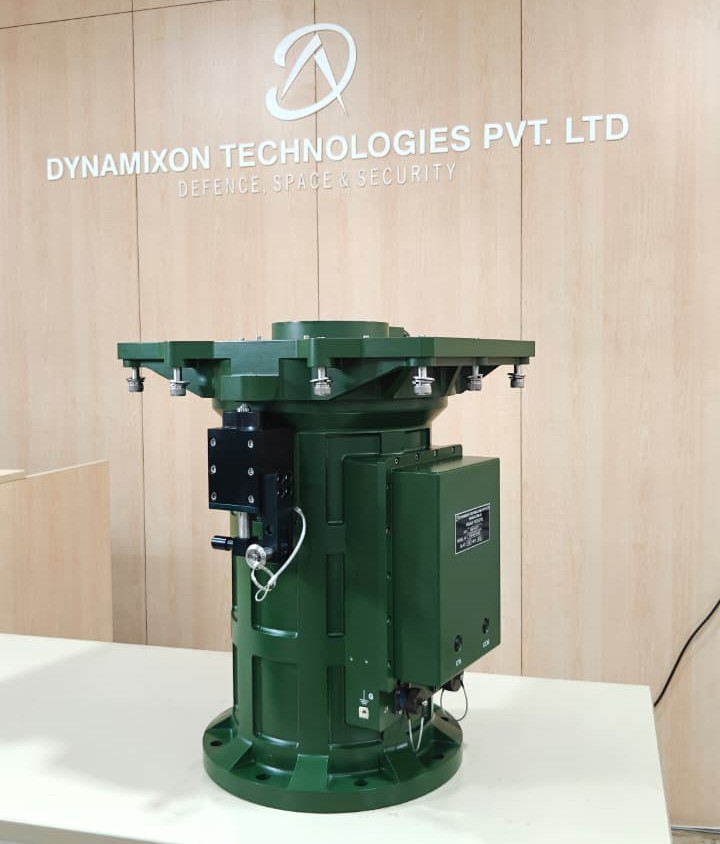

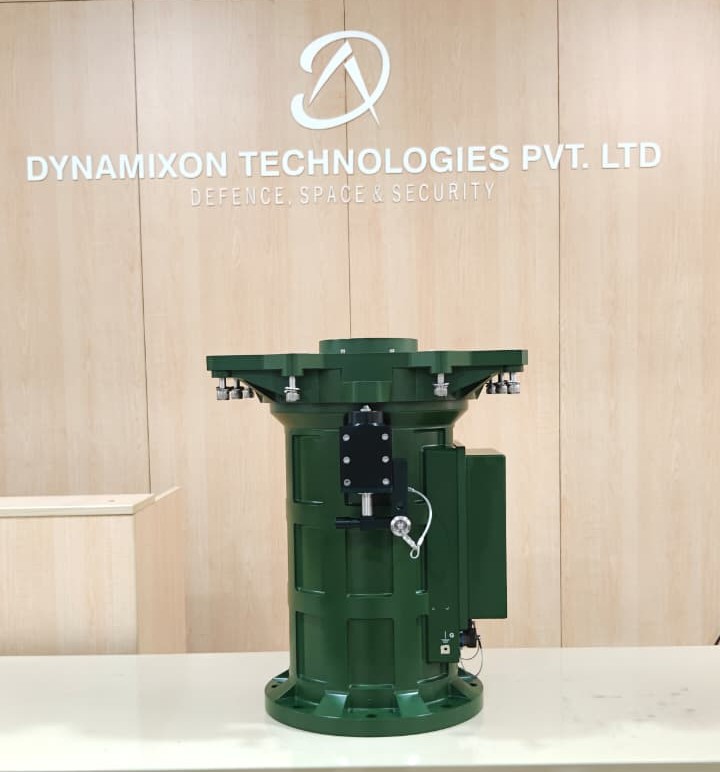

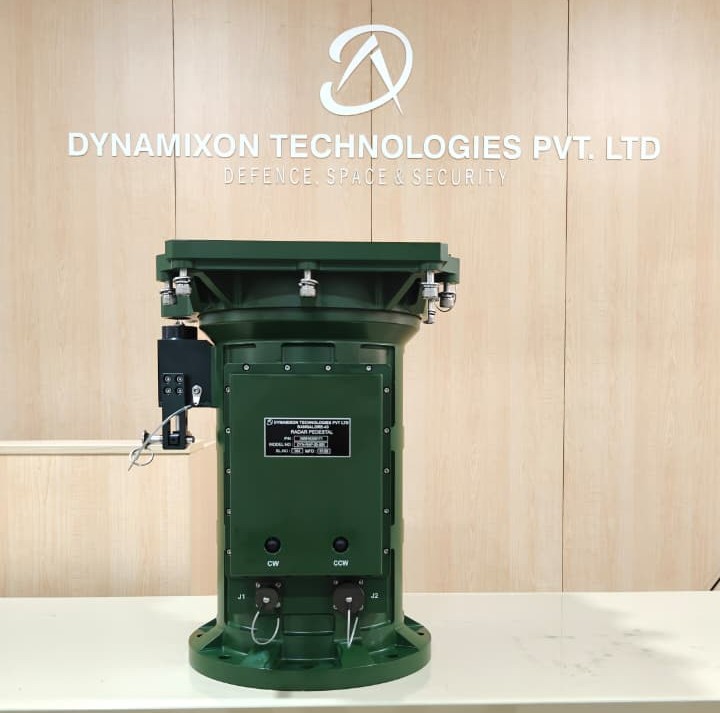

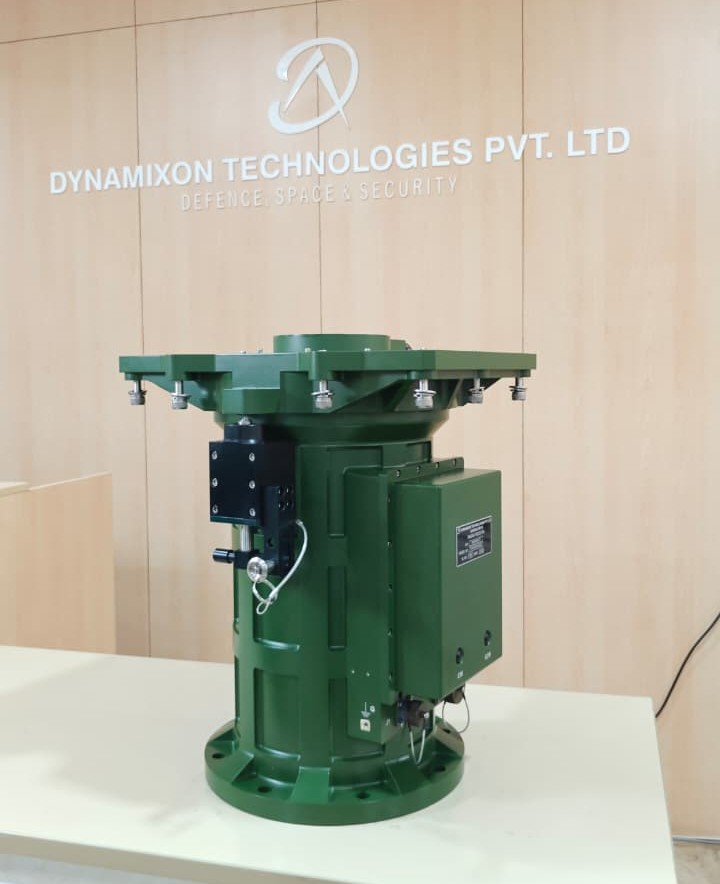

A structural and rotational pedestal platform engineered to support radar antenna assemblies with precise positioning control.
Suited for ground-based and mobile radar platforms requiring stable rotational support and precise pointing accuracy.
Detailed specifications are available in the datasheet. Please contact us for your requirement.
| Parameter | Specification | Additional Information |
|---|---|---|
| Type of Pedestal | Single Axis Radar Pedestal,Electro Mechanical | |
| Power | 28V DC ±10%, 75A max. | |
| Slip Ring | Yes. FIM | |
| Wind load | Operational: 80 kmph, Survival: 120 kmph | |
| Rotational Speed | 20 rpm | |
| Position Accuracy | 0.1° | |
| Readout Accuracy | 0.1° | |
| Hysteresis | Zero | |
| Payload Capacity: | 130 kgs | |
| Unit Weight | 60 kgs | |
| Interface | RS422 | |
| Transportation Lock | Yes, Manual | |
| Built Material | High Strength AL Alloy with suitable grade SS fasteners | |
| Sealing | IP65 | |
| Power Consumption | ≤ 1000 Watts | |
| Application | Military Vehicle, Ship | |
| Rotational Speed | 20 Rpm | |
| Dimension | 500 x 400 x 600mm | |
| Construction | Hight Precision Motors with Harmonic Drive, Encoders Slew Ring and Electronics Drives | |
| Environmental requirements | Environmental specification based on JSS-55555 Operational temperature: -20°C to 55° C Storage Temperature: -30° to 70°C Damp Heat :99% RH @40°C Salt fog: According to JSS-55555 Vibration: According JSS-55555 Shock: according to JSS-55555 EMC/EMI: According to MIL-STD-461E |
