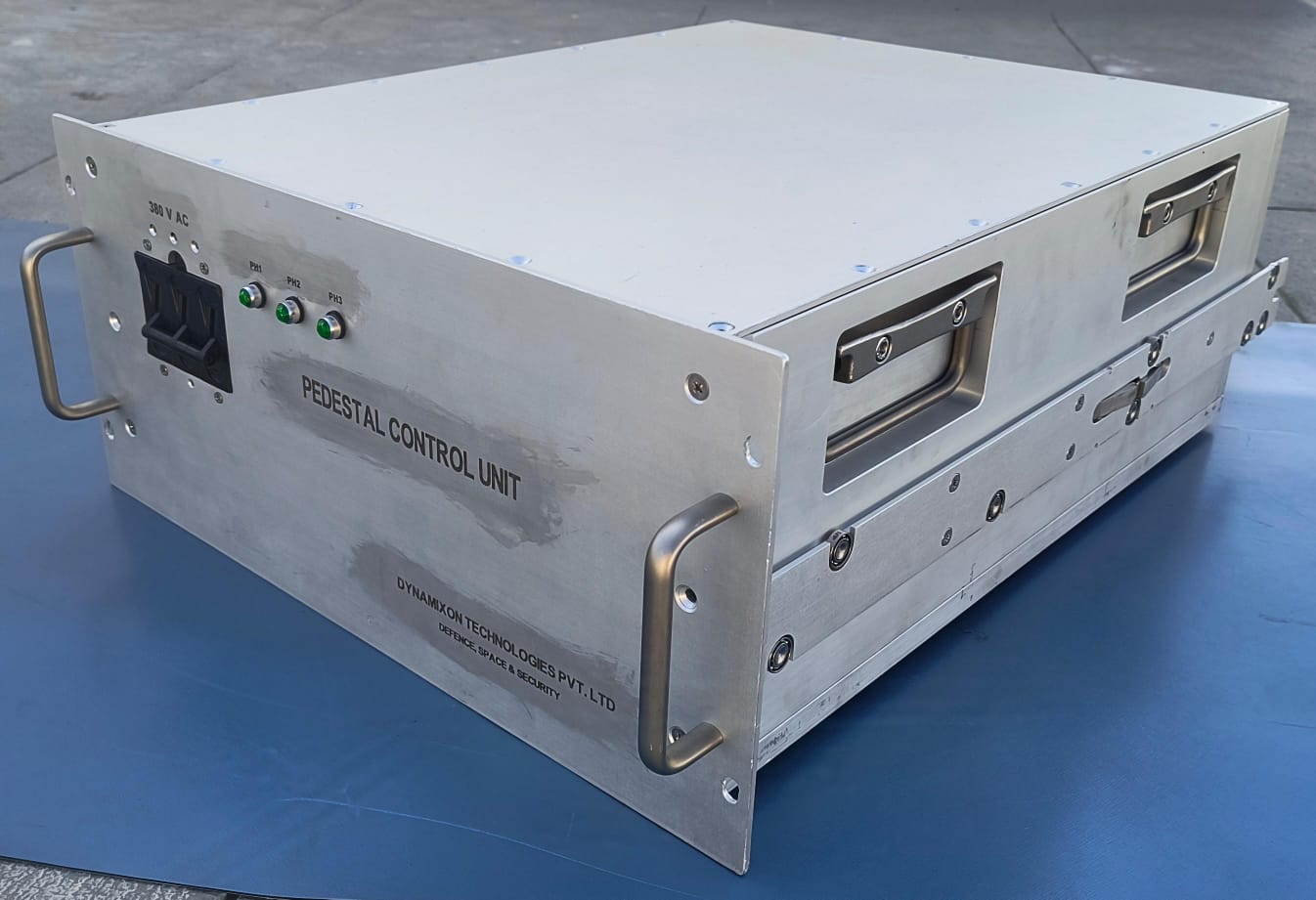

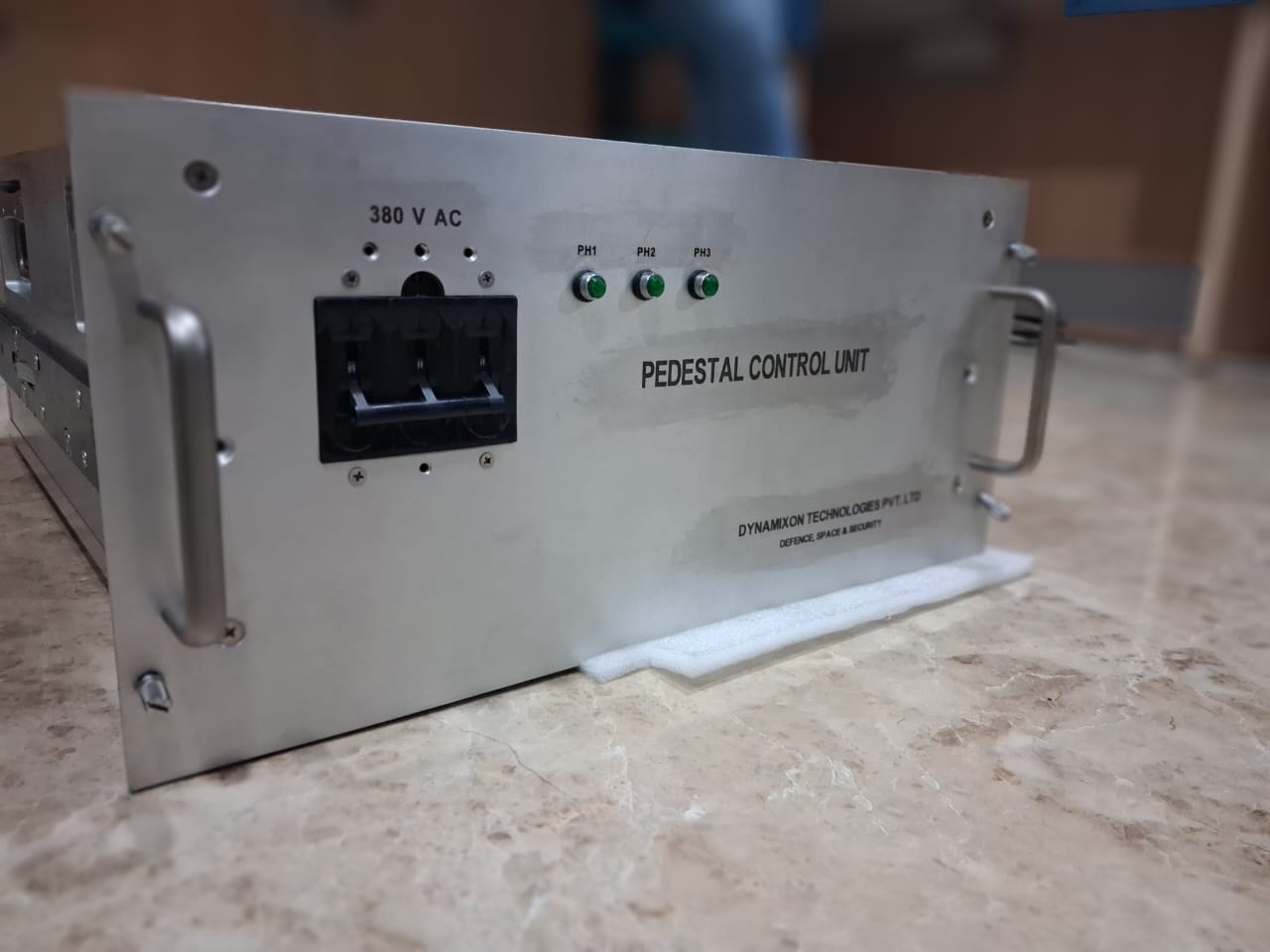

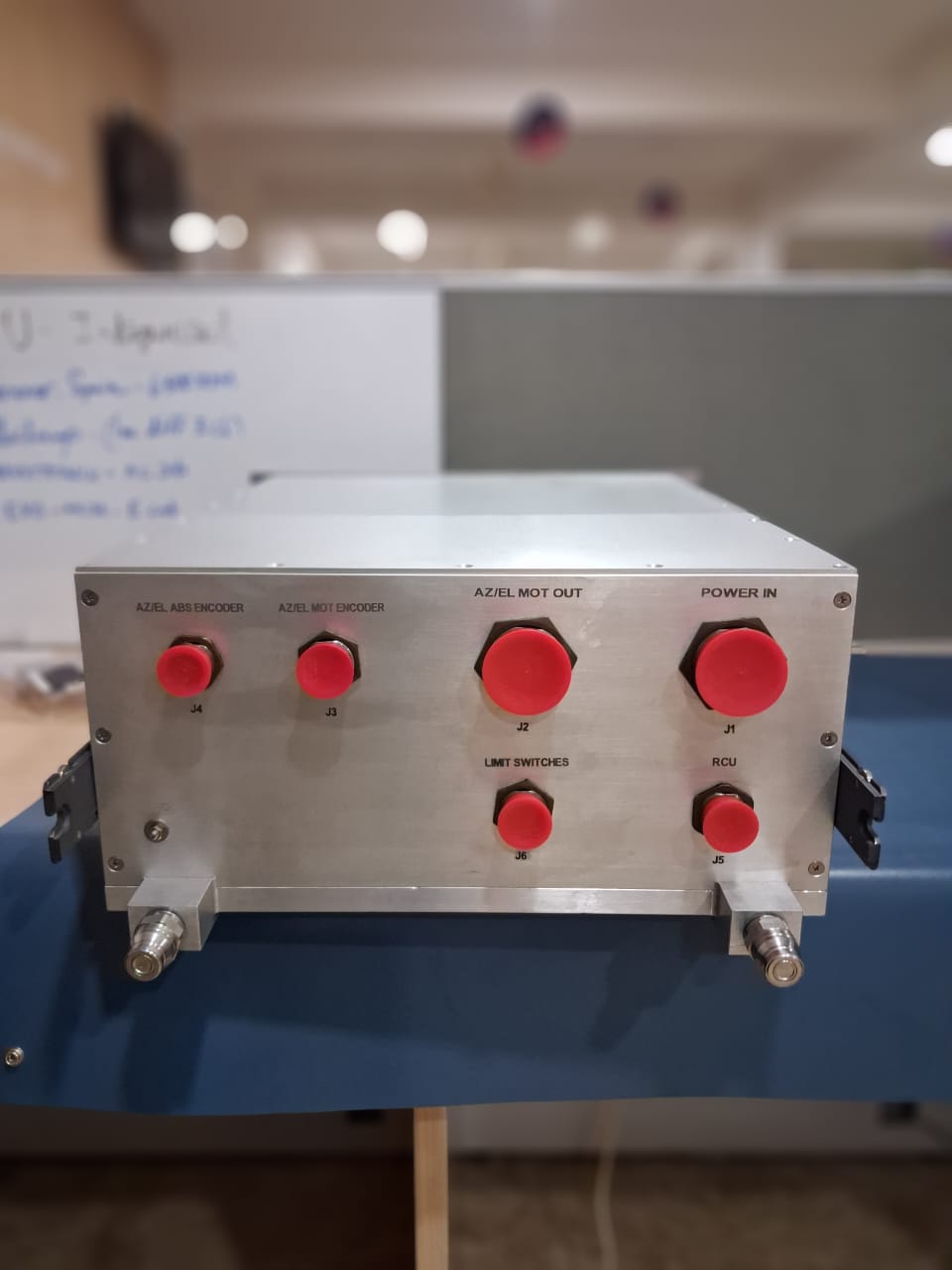

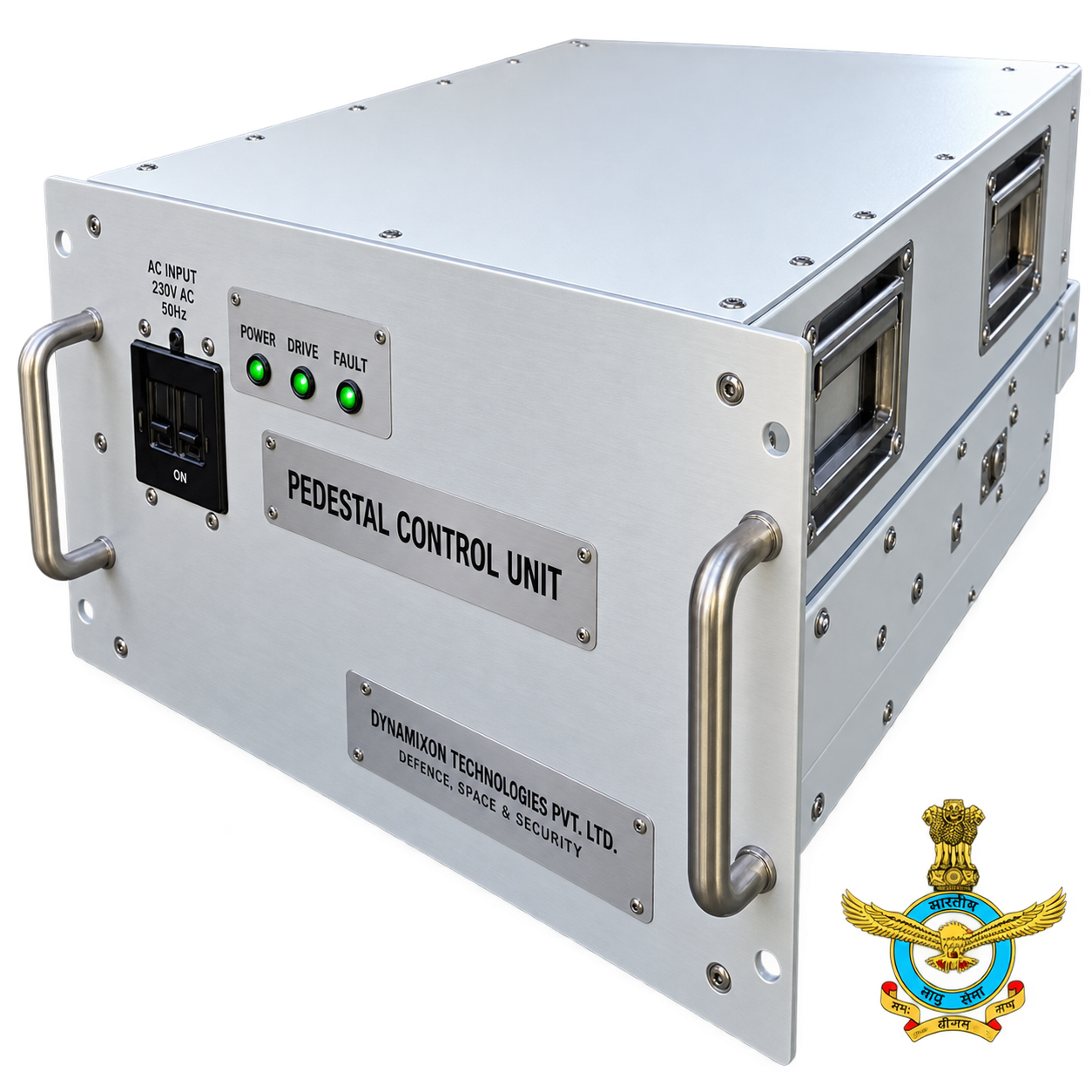

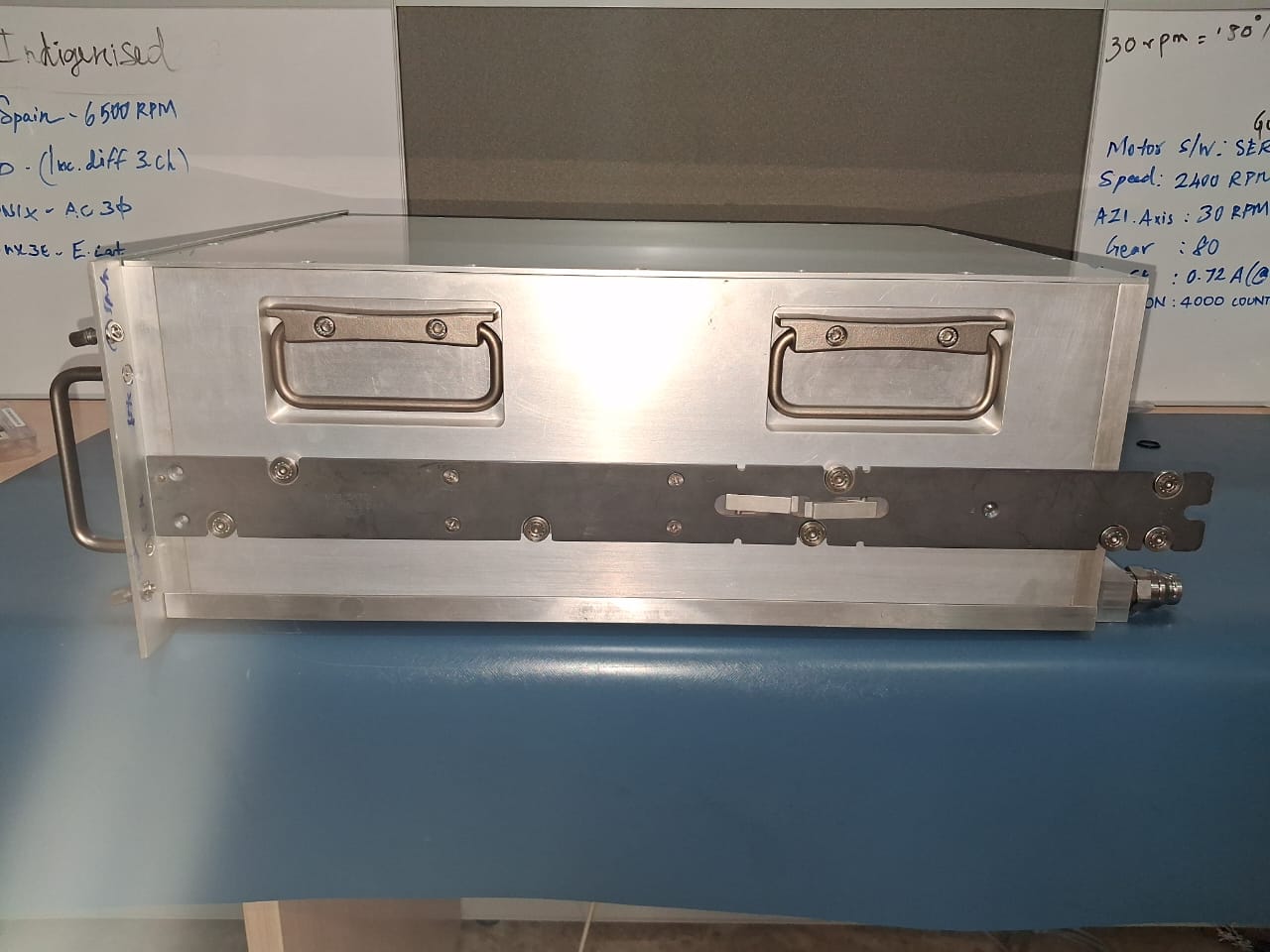

An electronic control unit engineered to drive and manage pedestal and positioning systems with precision command and feedback.
Used alongside pedestal and gimbal platforms to provide positioning control, monitoring and system feedback.
Detailed specifications are available in the datasheet. Please contact us for your requirement.
| Parameter | Specification | Remarks |
|---|---|---|
| Type | Pedestal Control Unit | |
| Equipment Weight | ≥ 40 Kgs | |
| Encoder Type | Absolute SSI and Incremental Encoder | |
| Azimuth Range | 0˚ to 360˚ (Continuous) | |
| Elevation Range | -5˚ to 80˚ | |
| Azimuth Speed | 0 to 30 RPM | |
| Input Power | 3 Ø AC, P – P 450 VAC, P - N 240 VAC | |
| Operating Frequency | 50/ 60 Hz | |
| Communication Interface | RS232, RS422, CAN | |
| Operating Temperature | -10˚ C to +55˚ C | |
| Humidity | 95% at 40˚C | |
| Azimuth Position Accuracy | ±1˚ | |
| Elevation Position Accuracy | ±0.5˚ | |
| Position Reporting Resolution | 0.05mrad | |
| Assembly Type | For Rack Mount | |
| Payload | MPR Radar (Approx. 1000kg) | |
| Material | Al Alloy 6061 – T6 | |
| Finish | Clear Anodizing | |
| Safety Switch | Circuit Breaker | |
| Phase Status | Indication LED’s | |
| Application Standard | For Ground Application Radars | |
| Thermal Management | Chiller Unit with Coolant |
